Inserting the SD card:

1. Make sure that the Monitor is turned off and the screen facing is towards you.
2. Insert the memory card with the text on the Micro SD card facing you.
3. Push the memory card in until a click is heard.

Monitor Installation:

Choose from mounting on the windscreen or the dashboard and follow the instructions below.

Installing windscreen suction mount:

1. Attach the two pieces of the mount together and lock into place.
2. Adjust the angle of the mount.
3. Clean the windscreen area where the suction mount is to be mounted.
4. Pull the suction cup lever up to release suction.
5. Press the suction mount on the windscreen and lock it by pressing the suction cup lever down until it snaps into place.
6. Snap the ClearView 7 onto the magnetic mount holder.

Installing 3M dash mount base:

1. Attach the magnetic mount holder and 3M adhesive mount together and lock into place.
2. Clean the area on the dashboard where the mount is to be place.
3. Remove the 3M tape at the bottom of the mount holder.
4. Place the mount on the cleaned surface and press it firmly for two minutes.
5. Snap the ClearView 7 on to the magnetic mount holder.
6. Adjust the height and view angle of the ClearView 7 using the knob at the back of the 3M adhesive mount.

Rear camera installation:

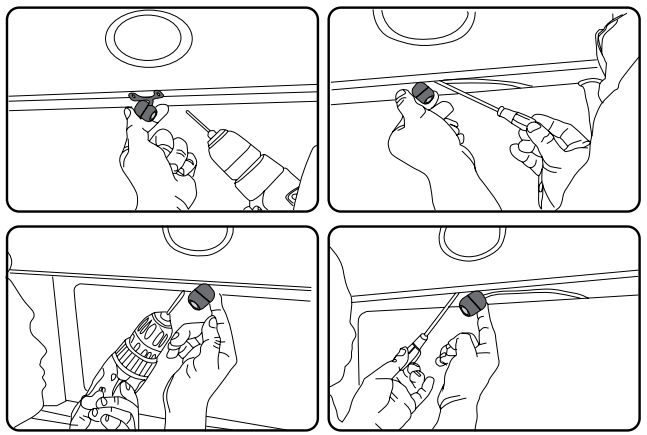

1. Select a flat and central location near the number plate lamp at the rear of your vehicle to mount the camera.
2. Attach tape to the bracket of the rear camera to hold the camera in position while installing and drill two small holes, one for the first screw and the second to run the rear camera cable through.
3. Use a screwdriver to fasten the first screw but leave it loose enough to adjust the rear camera.
4. Insert the rear camera cable through the intended drilled hole and check the installation position.
5. Mark a position suitable for the second screw and drill a small hole.
6. Fasten the second screw and tighten both screws securely.

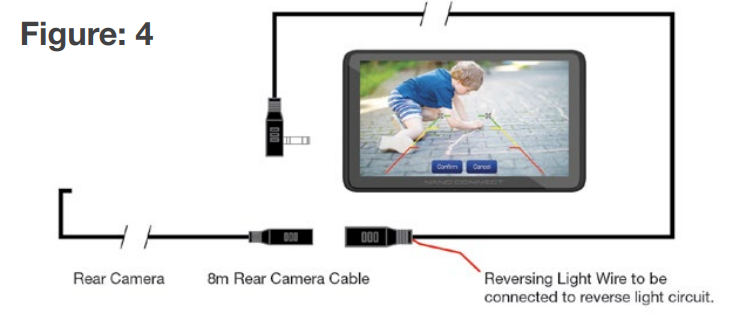

7. See the image at the beginning of the article to see the wiring diagram

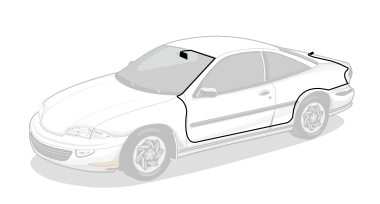

8. Wire the rear camera cable through the car as shown below to connect it to the monitor.
