Front-view option:

RVK-43 functions as a rear-view camera standard and also supports front view application. For front view application, you can cut the thin WHITE wire near the camera lend and restart power to see the image reversed.

Grid-line option:

RVK-43 comes with parking gridlines. To remove the gridline application, you can cut the thin GREEN wire near the camera lead and restart power to show the removal of gridlines on your screen.

Mounting the camera:

1. Select a flat and centered location near the number plate lamp at the rear of the vehicle to mount the camera.
2. Attach tape to the bracket of the camera and drill a small hole for the first screw.
3. Use the screwdriver to fix the first screw, but don't tighten it yet.
4. Insert camera wire through newly drilled hole and mount securely in place.
5. Mark the position suitable for the second screw and drill a small hole for it.
6. Fix the second screw and tighten both screws.

Wiring the camera:

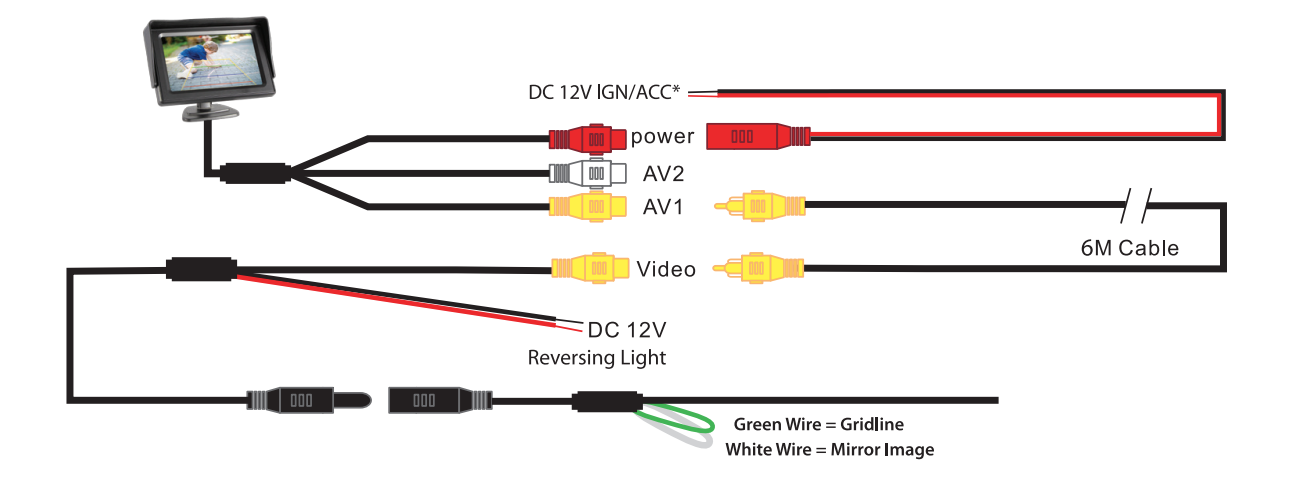

1. Please follow the diagram to wire the camera to the monitor. Refer to a professional if you do not have any experience with this procedure or any like it.
