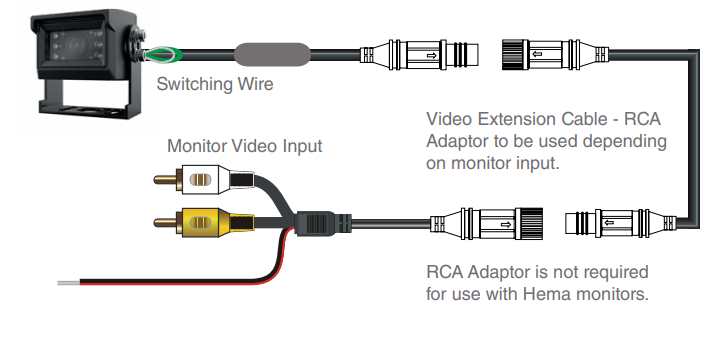

Following the wiring guide above, use the parts provided in the box to connect your camera to your monitor. This could be the HM-MNT found here

Please note that unless you have experience, please refer to a trained professional to have this worked on to ensure that it is done correctly.

Front View Options:

The HM-CAM15 functions as a rear-view camera as standard. To change the orientation to front or side view, please cut the white wire located at the base of the cable near the camera.

Guideline Options:

To change the view of the camera to remove in-built guidelines, cut the green wire located at the base of the cable near the camera.
