Charging the rear camera:

Before you begin any installation, you should begin charging the camera pack to ensure that it is ready for operations.

1. Connect the included USB cable to the camera.
2. Let the camera charge for 3-4 hours.
3. The charging indicator should change to green when battery is full.

Installing the rear camera:

1. Remove the license plate from your vehicle. Make sure to keep the original screws as they will be required later.
2. Remove the 3M adhesive stickers from the camera bracket.

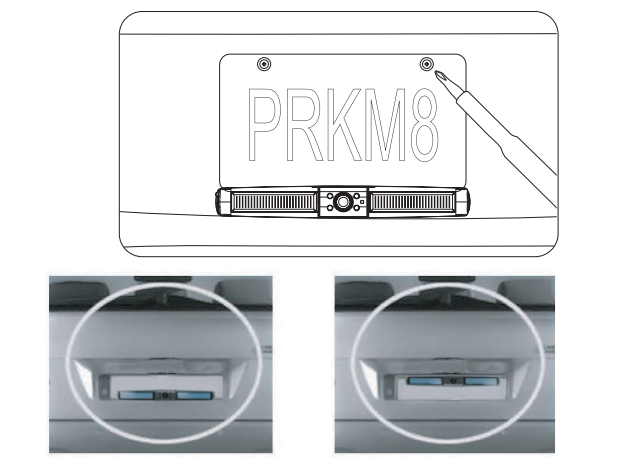

3. Depending on your vehicle's license plate shape or type of plate mounting bracket, mount the camera on either the upper side or underside of the license plate.

Mounting the monitor:

Please ensure that when choosing a location for the monitor to mount, ensure that it does not obstruct your vision while driving.

1. Clean the mounting surface well.
2. Position the suction mount to a smooth surface that suits your requirement.
3. Press the suction cup against the smooth surface and press and lock down to attach and fix the mount to the surface.
4. Snap in the monitor to the suction mount.
5. Adjust the mounting arms to suit your viewing angle of the monitor and tighten the screws on the mount to fix the position.
6. Connect the power cable to the vehicle's cigarette lighter socket 12V/24V power outlet. The cable must not interfere with the safe operation of the vehicle.

Pairing the devices:

The monitor and camera provided together should by default already be paired together, however, if it is required that you need to pair them again, see the guide below:

1. Enter into the menu settings.
2. Press "pair".
3. Select "camera" and then the camera to be paired with.
4. Wait for pairing to finish, which should end with the monitor turning off.
